Understanding Specular and Metalness Workflows in 3D Rendering and Their Role in DMIx

Introduction to Specular and Metalness Workflows

In 3D rendering, achieving realistic materials relies heavily on workflows that define how surfaces interact with light. The two most common methods used in Physically-Based Rendering (PBR) are the specular workflow and the metalness workflow. Both approaches are essential for rendering realistic materials, but they serve different purposes and offer distinct advantages.

  1. Specular Workflow

The specular workflow offers high flexibility and precise control over how light reflects off materials. It is particularly well-suited for rendering complex, non-metallic materials like textiles.

  • Key Components:
    • Diffuse Map: Defines the base color of the material (non-metallic surfaces).
    • Specular Map: Determines the reflectivity and color of reflections for the surface. For metallic surfaces, it controls the color of reflections; for non-metallic surfaces, it is typically grayscale.
    • Glossiness Map: Specifies the sharpness or blurriness of reflections, controlling the surface roughness.
  • Advantages:
    • Greater control over colored reflections.
    • Ability to fine-tune light interactions for highly detailed and realistic results.
    • Excellent for representing materials like textiles, which have varied optical properties depending on weave, texture, and finish.
  • Why It Matters for Textiles: Textiles are complex materials that require detailed representation of subtle light interactions, such as gloss, sheen, and reflectivity variations. The specular workflow enables:
    • Accurate simulation of finishes like matte cotton, shiny silk, or coated fabrics.
    • Realistic highlights and shading at the fiber level.
  1. Metalness Workflow

The metalness workflow simplifies material creation, focusing on whether a surface is metallic or non-metallic. It is widely used in gaming and general-purpose PBR setups.

  • Key Components:
    • Base Color (Albedo) Map: Defines the material’s base color. For metals, this includes the reflective color; for non-metals, it represents the diffuse color.
    • Metalness Map: Indicates whether a material behaves as a metal (value = 1) or non-metal (value = 0). Partial values can represent transitions.
    • Roughness Map: Controls surface roughness, affecting how light scatters.
  • Advantages:
    • Simplified workflow with fewer maps to manage.
    • Ideal for applications where performance and ease of use are priorities.
  • When to Use: The metalness workflow works well for general materials but is less suitable for complex, non-metallic materials like textiles that require nuanced reflectivity and light interaction.

 Why DMIx Prioritized Specular Workflow

From its inception, DMIx focused on achieving true digital twins for materials. This requires the highest fidelity in rendering, especially for textiles, which demand detailed control over their optical properties. The specular workflow has been the cornerstone of DMIx’s approach, offering:

  • Hyper-accurate material representation for textiles.
  • Seamless integration with advanced tools for capturing real-world material properties.
  • Realism and precision in light interactions, essential for digital twins.

Metalness Workflow Support in DMIx

To meet the needs of our users, DMIx fully supports the metalness workflow. This provides greater flexibility for:

  • Users working in industries like gaming, VR, or general PBR applications.
  • Scenarios where simplicity and performance (real time) are key considerations.

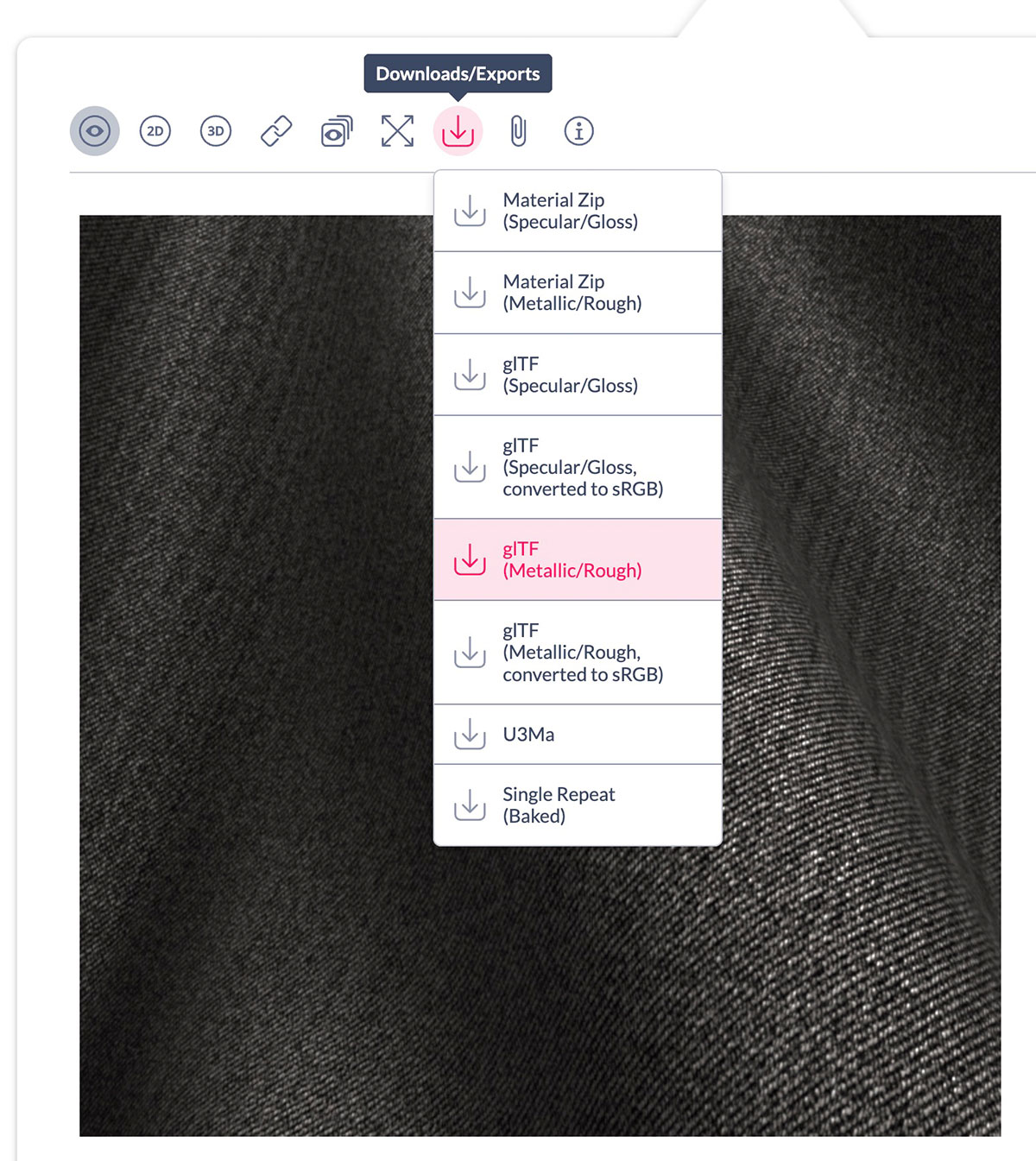

 Choosing the Right Workflow in DMIx

With DMIx’s support for both workflows, users can now select the one that best suits their goals:

  • Specular Workflow:
    • Best for rendering textiles and achieving digital twins.
    • Offers unparalleled control over reflectivity, gloss, and light interaction.
    • Ideal for brands and suppliers focused on accuracy and realism.
  • Metalness Workflow:
    • Simplifies the material setup process.
    • Works well for real-time applications or projects prioritizing speed and ease of use.

Conclusion

At DMIx, we’re committed to empowering our users with the tools they need to achieve their creative and technical goals. By supporting both specular and metalness workflows, we provide the flexibility to address diverse industry demands while maintaining our commitment to accuracy and innovation. Whether you’re creating artistic concepts or striving for hyper-realistic digital twins, DMIx has you covered.
